** Optional External Battery to extend capacity to 990 Wh (Sold separately). Click for Easy Setup Manual.

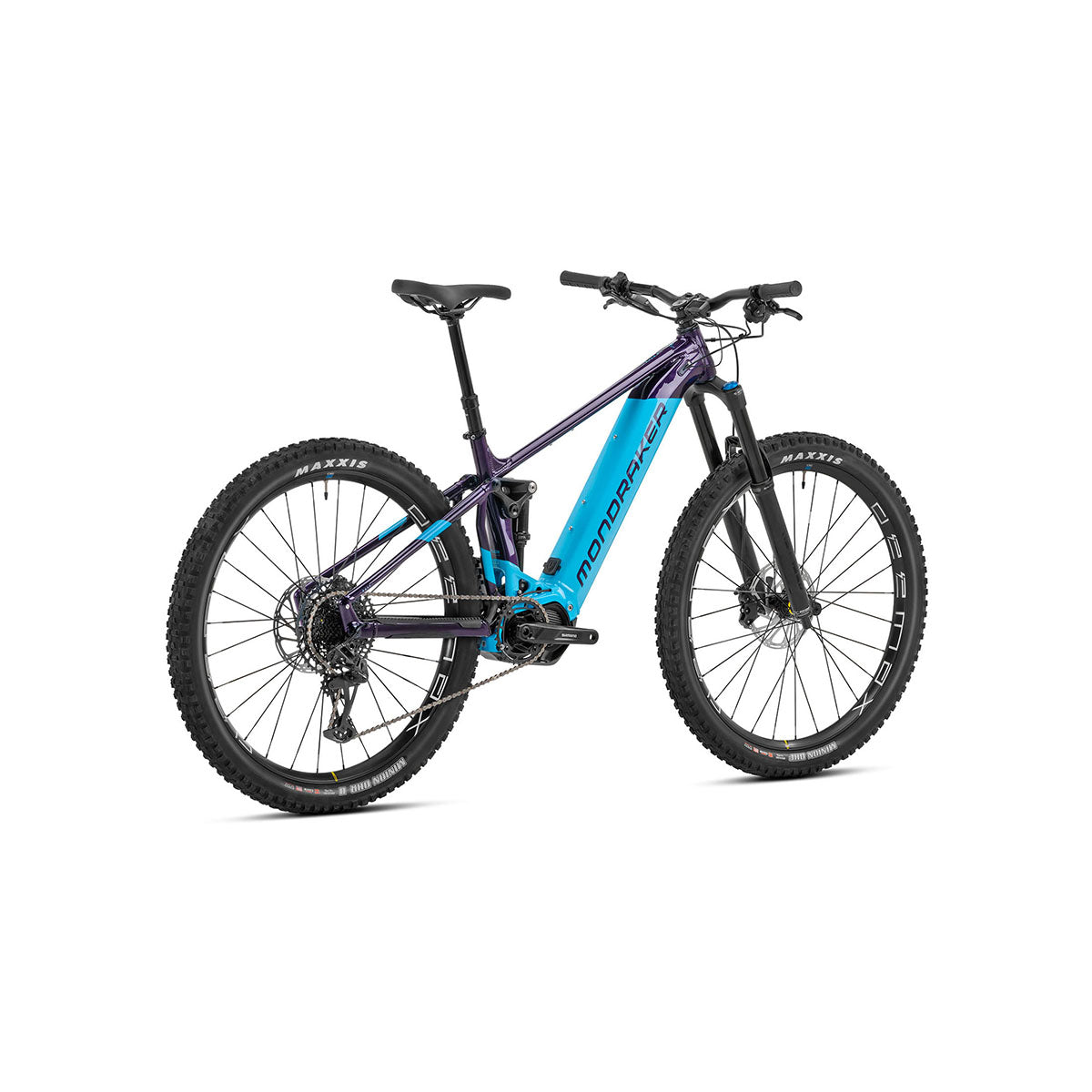

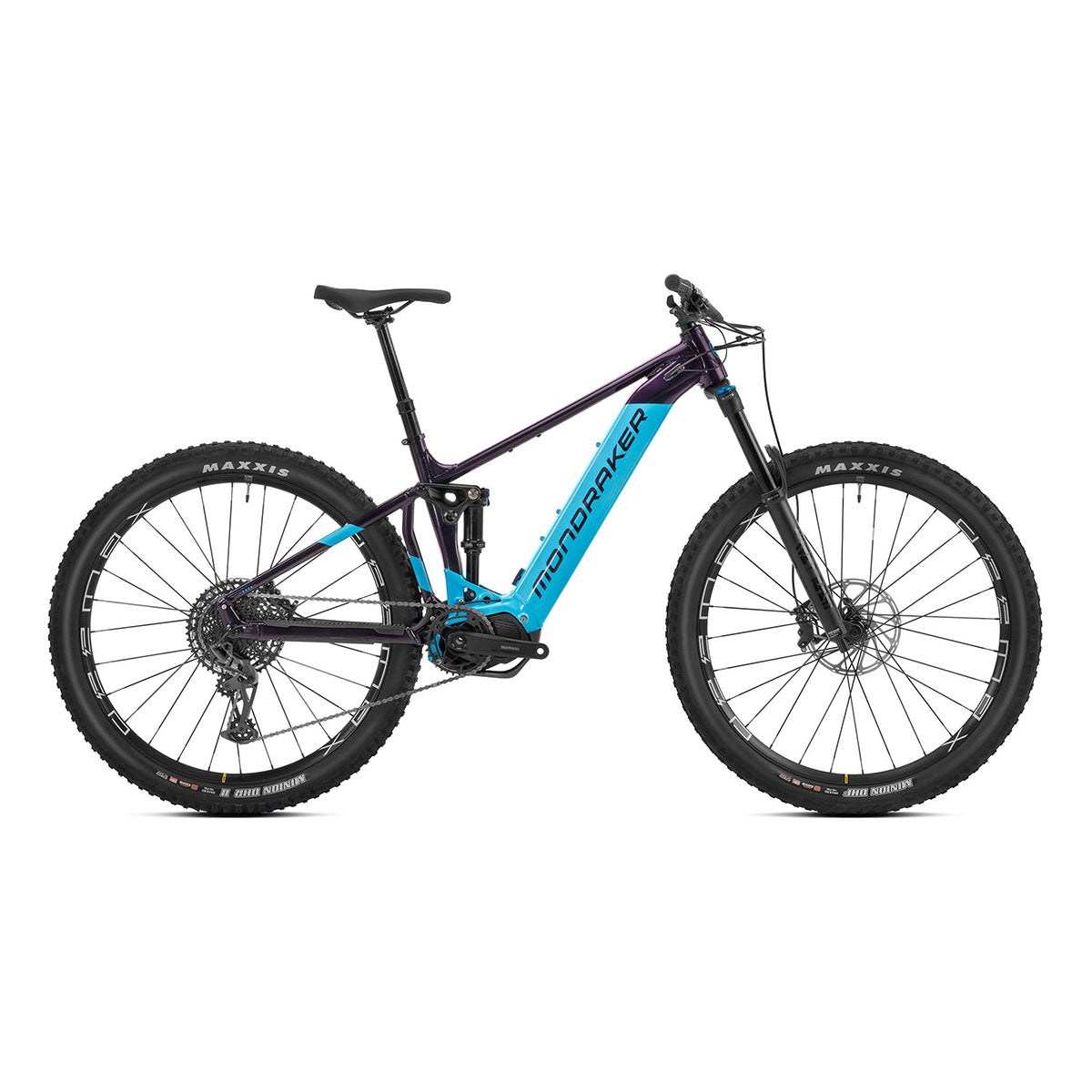

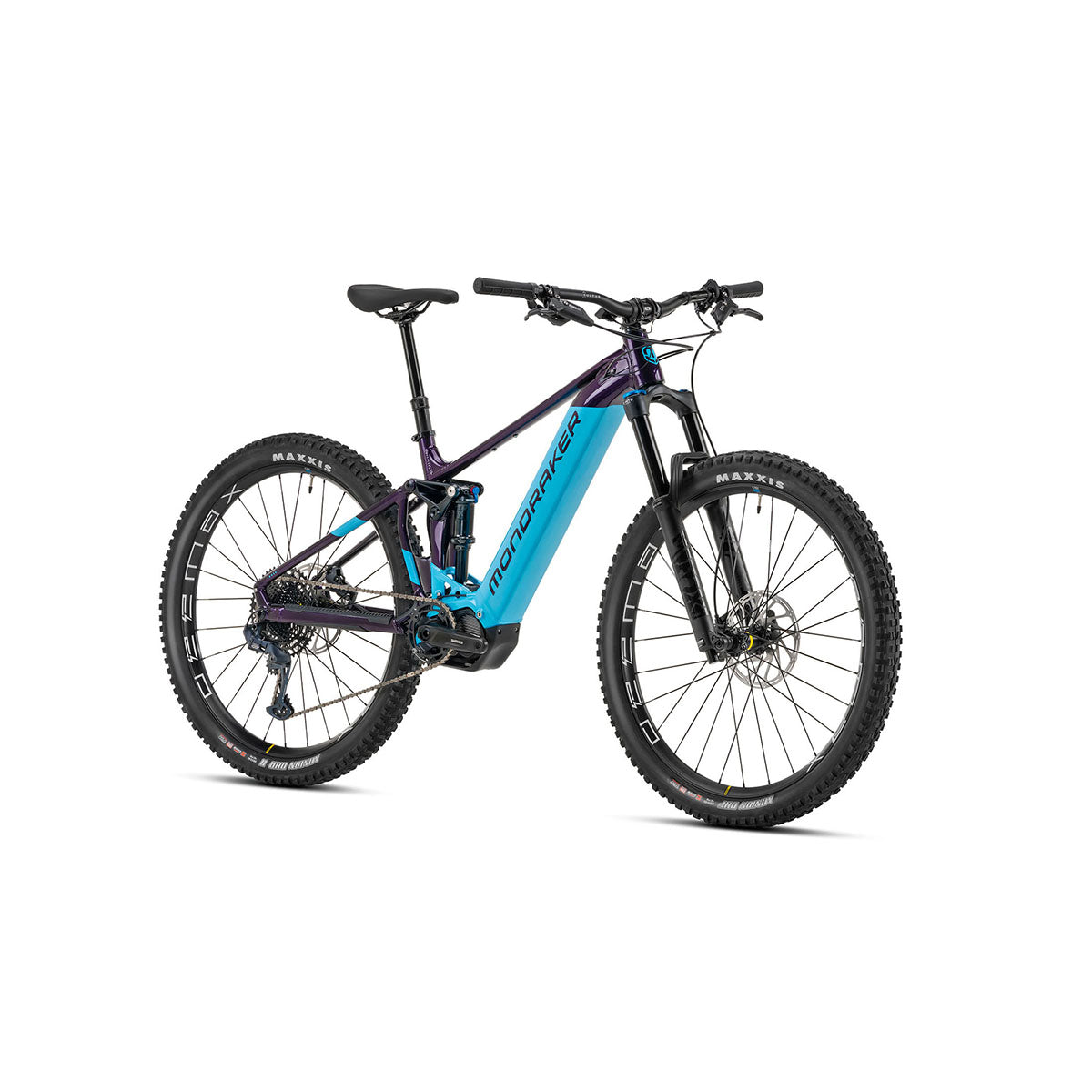

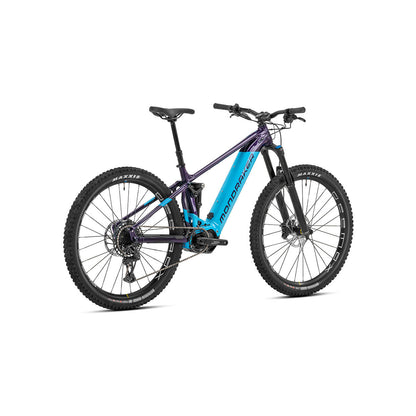

Experience Unmatched Performance with the Mondraker Dusk R SE e-MTB
Elevate your off-road adventures with the Mondraker Dusk R SE, the ultimate e-MTB engineered for enduro, trail, and all-mountain dominance. This high-performance electric mountain bike combines cutting-edge technology with a sleek, modern design to ensure you conquer every climb and descent with absolute confidence.
At the heart of the Dusk R is the powerful Shimano Steps EP800 motor paired with an integrated 630Wh battery, providing seamless, reliable power. Experience the legendary Zero Suspension System, which delivers extreme bump absorption, zero power loss, and superior stability on the most technical terrain. With its Forward Geometry, you'll enjoy improved handling, precision, and control, making this bike a top choice for riders who demand the best.
Whether you're tackling rugged trails or long-distance mountain rides, the Dusk R SE offers the perfect blend of speed, mobility, and durability. Its stealth alloy frame and high-end components ensure you stay ahead of the pack.
Tags: e-MTB, Enduro Bike, Electric Mountain Bike, Mondraker Dusk, Trail Riding
Hashtags: #MondrakerDusk #eMTB #EnduroLife #ElectricMountainBike #TrailReady
SPECS
FRAME |
Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor. *Optional external battery |
SIZES |
S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
REAR SHOCK |
Fox Float DPS LV EVOL Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
SHOCK SETTINGS |
Medium compression, Medium rebound, 0.4 volume spacer |
FORK |
Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload |
HEADSET |
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45° |
STEM |
Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
HANDLEBAR |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
GRIPS |
Onoff Diamond, 1lock-on, 135mm |
SEATPOST |
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm |
SADDLE |
Fizik Terra Aidon X5 145mm |
FRONT BRAKE |
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
REAR BRAKE |
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
BRAKE LEVER |
Sram G2 R, tool-free reach adjust |
RIMS |
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
SPOKES |
CN round stainless steel |
FRONT HUB |
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
REAR HUB |
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts |
FRONT TIRE |
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
REAR TIRE |
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
CRANKSET |
FSA, 165mm |
RINGS |
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
BOTTOM BRACKET |
- |
PEDALS |
- |
CHAIN |
Sram SX Eagle, 12s, Powerlock |
FRONT DERAILLEUR |
- |
REAR DERAILLEUR |
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
SHIFT LEVERS |
Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
CASSETTE |
Sram PG-1210, 11-50T, 12s |
MOTOR |
Shimano STEPS EP800 |
BATTERY |
Simplo internal 630Wh |
DISPLAY |
Shimano STEPS E8000 |
DERAILLEUR HANGER |
Mondraker M068 |
OTHERS |
*Optional external battery: Simplo 360Wh |
WEIGHT |
- |
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
Size |
S |
M |
L |
XL |
|
A |
Seat Tube Length |
380 mm |
420 mm |
450 mm |
490 mm |
B |
Top Tube Length |
605 mm |
625 mm |
650 mm |
670 mm |
C |
Bottom Bracket Drop |
-25 mm |
-25 mm |
-25 mm |
-25 mm |
D |
Bottom Bracket Height |
336 mm |
336 mm |
336 mm |
336 mm |
E |
Chainstay Length |
455 mm |
455 mm |
455 mm |
455 mm |
F |
Seat Tube Angle, Actual |
73.5° |
73.5° |
73.5° |
73.5° |
G |
Seat Tube Angle, Effective |
76° |
76° |
76° |
76° |
H |
Head Tube Angle |
65.5° |
65.5° |
65.5° |
65.5° |
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
J |
Wheelbase |
1225 mm |
1245 mm |
1265 mm |
1285 mm |
K |
Head Tube Length |
110 mm |
110 mm |
130 mm |
130 mm |
L |
Reach |
450 mm |
470 mm |
490 mm |
510 mm |
M |
Stack |
622 mm |
622 mm |
640 mm |
640 mm |
BIKE SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
Specs for all 2022 Bikes (Click to open in new window). Or download using the viewer below
